SPECIFICATIONS



Applicable Scene: All Terrain

Battery: 60V, 30AH (1800Wh)

Brake System: Front Wheel: Hydraulic Brake, Rear Wheel: Hydraulic Brake

Certification: ce

Charging Time: 5-10 h

Folded: No

Frame Material: Aluminum,Premium Aluminum Alloy

Included Components: 1. 19 x 2 inches MTB tires*2 2. 30Ah Battery 3. Charger*1 4. Fenders 5. Pedals*2 6. Front and rear light 7. Bicycle frame 8. Owner's manual 9. Bicycle Seat

Item Dimensions: LxWxH 66.2 x 28.3 x 43.3 inches

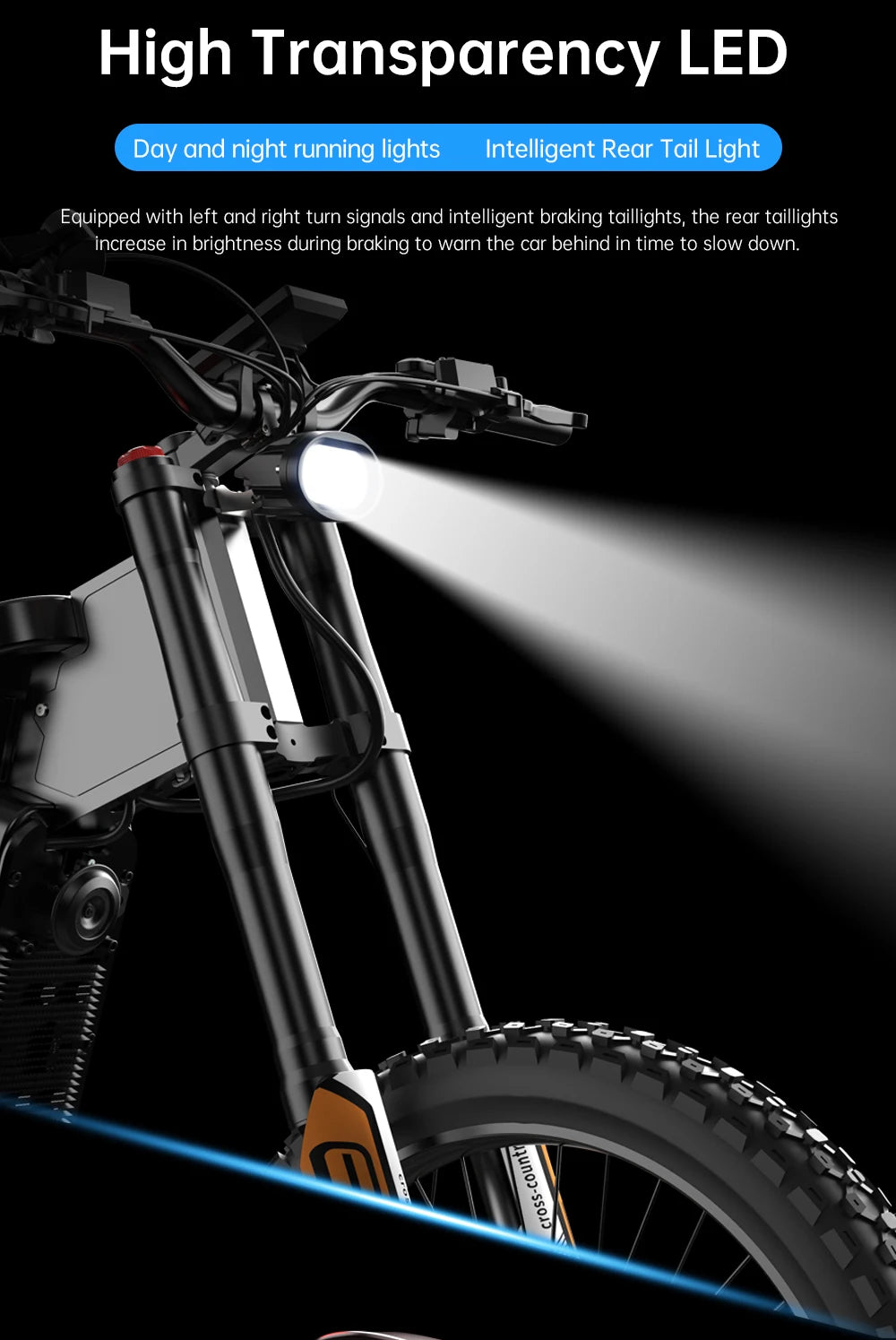

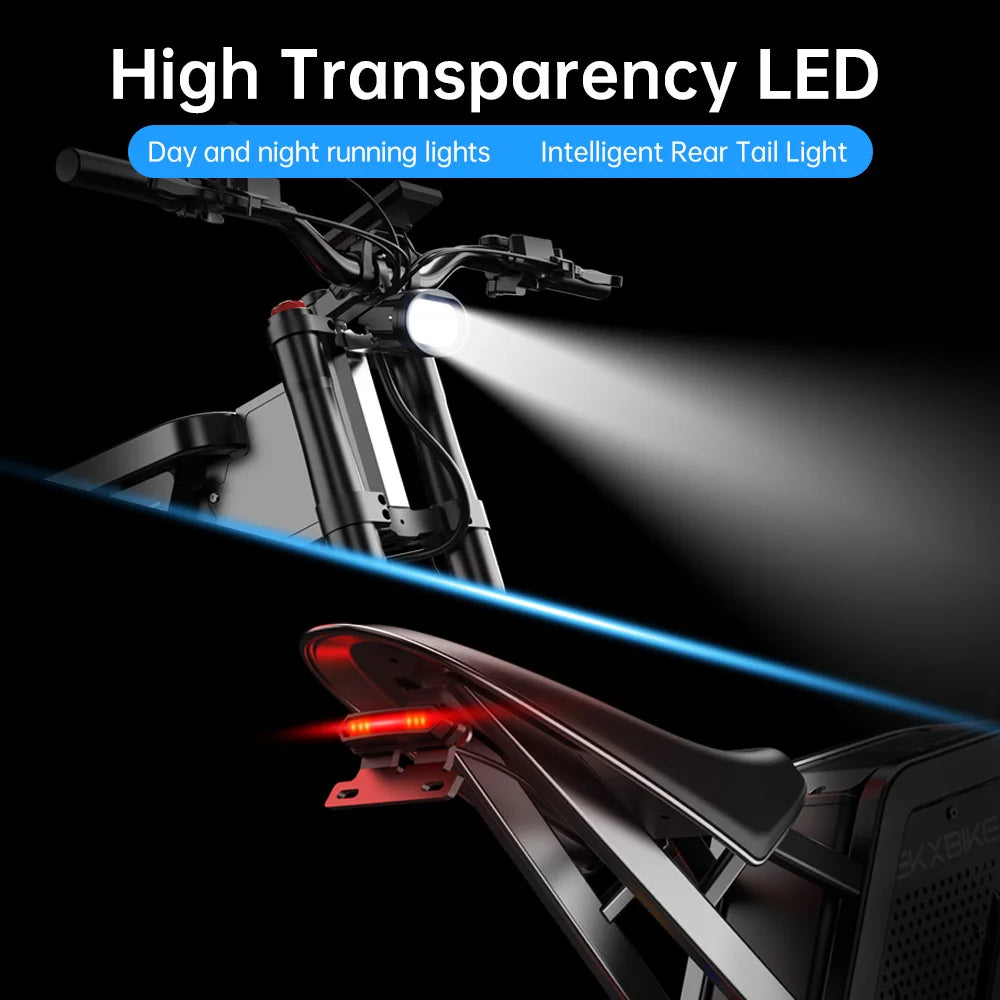

Lights: Headlight, Tail warning light

Max Speed: >50km/h

Maximum Load: 264 lbs / 120kg

Maximum Weight Recommendation: 264 Pounds

Model Number: X21 Max

Motor: Brushless

Motor Power: 3000W(nominal), 6000W(peak)

Packing List: 1x Dirt E-bike 1x Battery 1x Charger 2x Pedals

Power Supply: Lithium Battery

Range: 60km -90km | 37mi -60mi

Range per Power: > 60 km

Rated Passenger Capacity: One Seat

Seat Material Type: Faux Leather

Style: Luxury Type

Suggested Rider: Height: 5'6"-6'4" (167-193CM)

Suspension & Shocks travel: Full Suspension for Front & rear, Shocks travel is 120mm(4.72inch)

Tire Size: 19 x 2 inches MTB tires

Top Speed: 50-60 mph

Voltage: 60 V

Wattage: > 500w

torsion: 113NM







X21 Max Basic Feature：

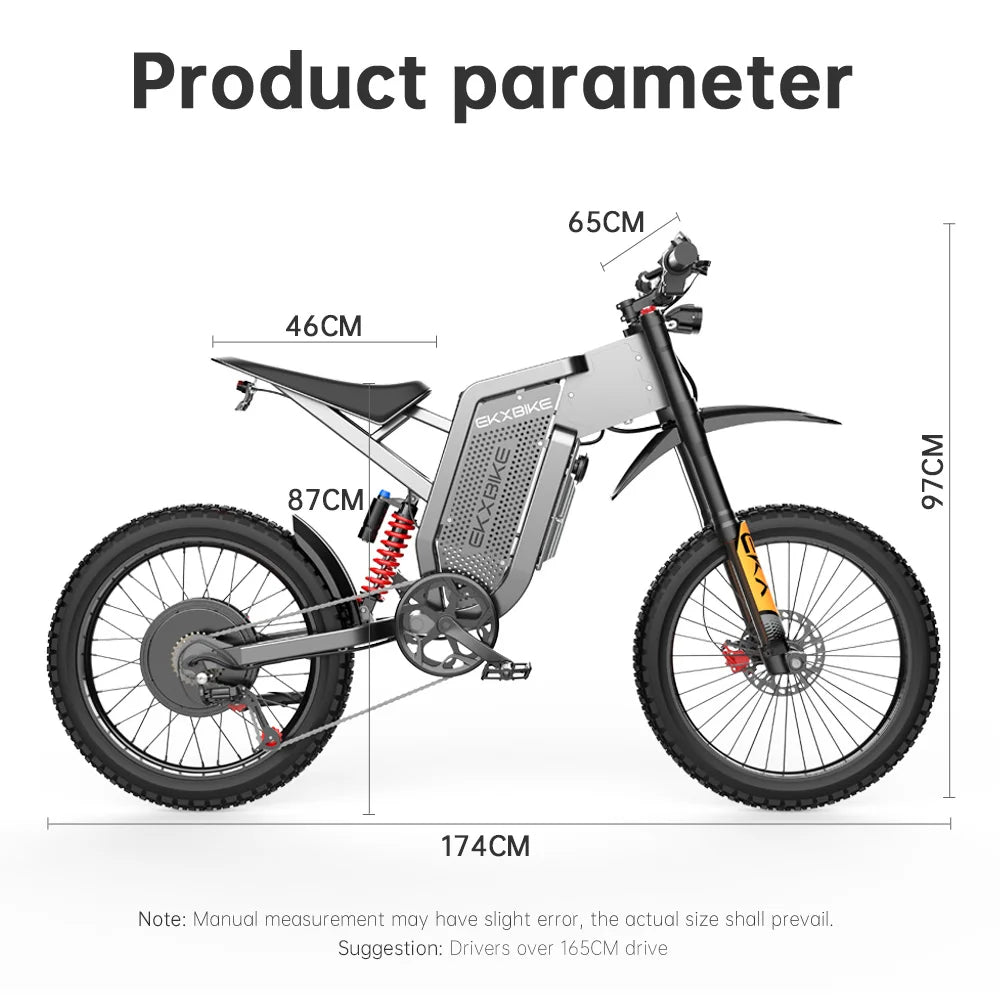

Expanded size: 174cm*97cm*65cm（68.5"*38.2"*25.6"）

Actual weight: About 55kg （99LBS）

Frame material: aluminum

Front fork: Hydraulic Front fork

Braking system: Front and rear hydraulic brakes

Transmission system: Rear drive

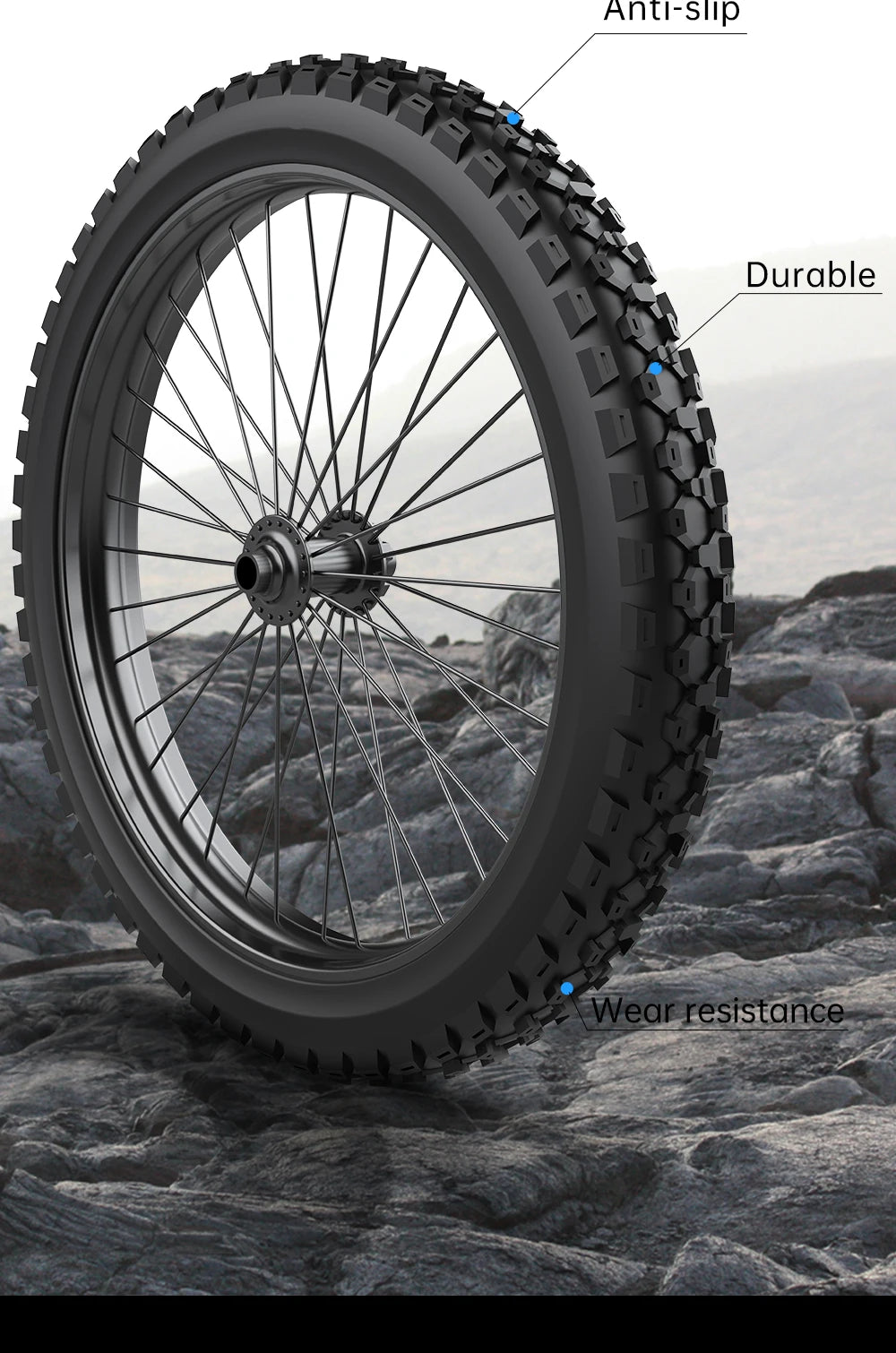

Tire size: 70/100-19 Off-road Tyres

Applicable height: 160-195cm(63"-76.8")

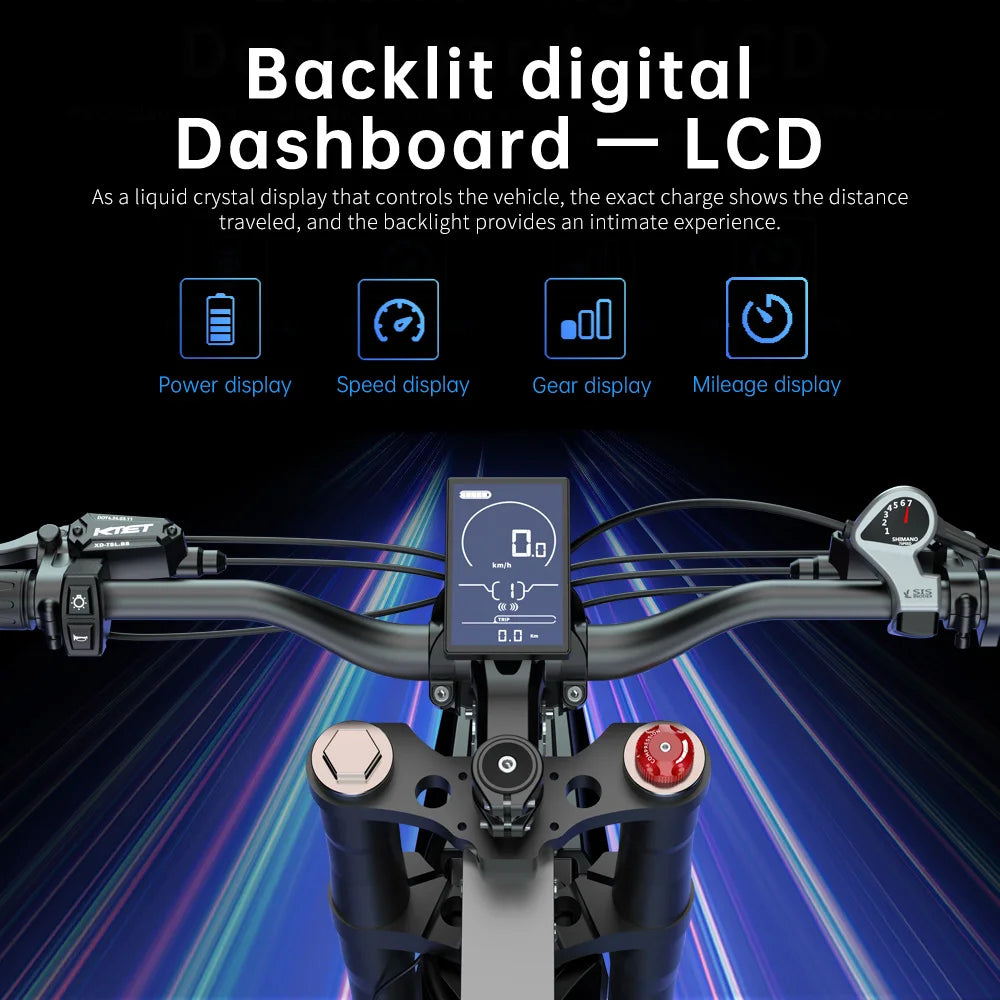

Display: LCD

Maximum speed ≤85km/h (52.8MPH)

Endurance 80-120km (50mile-75mile)

Slope <35°

Waterproof grade: IP67

Load weight≤150kg （330LBS）

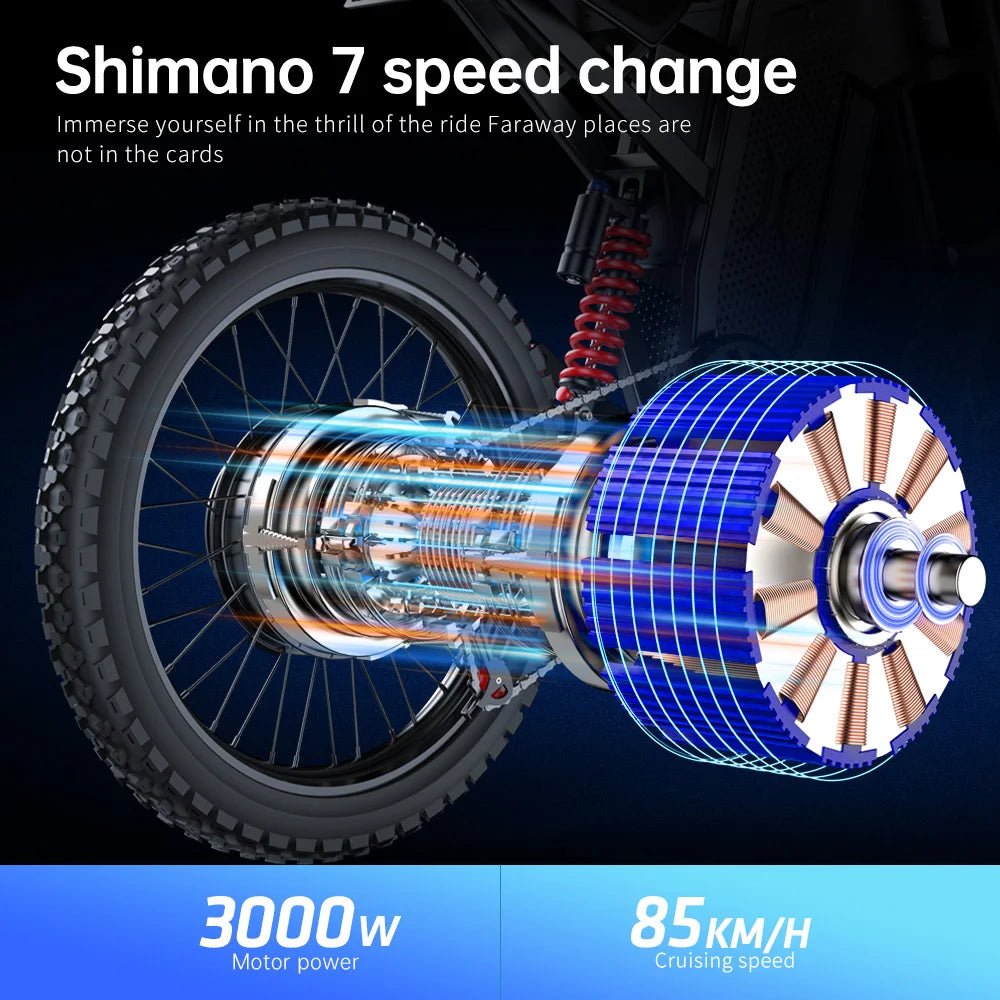

Motor parameters: 60v3000w Brushless Motor

Charging Output power 3A

Charging time 4-8H

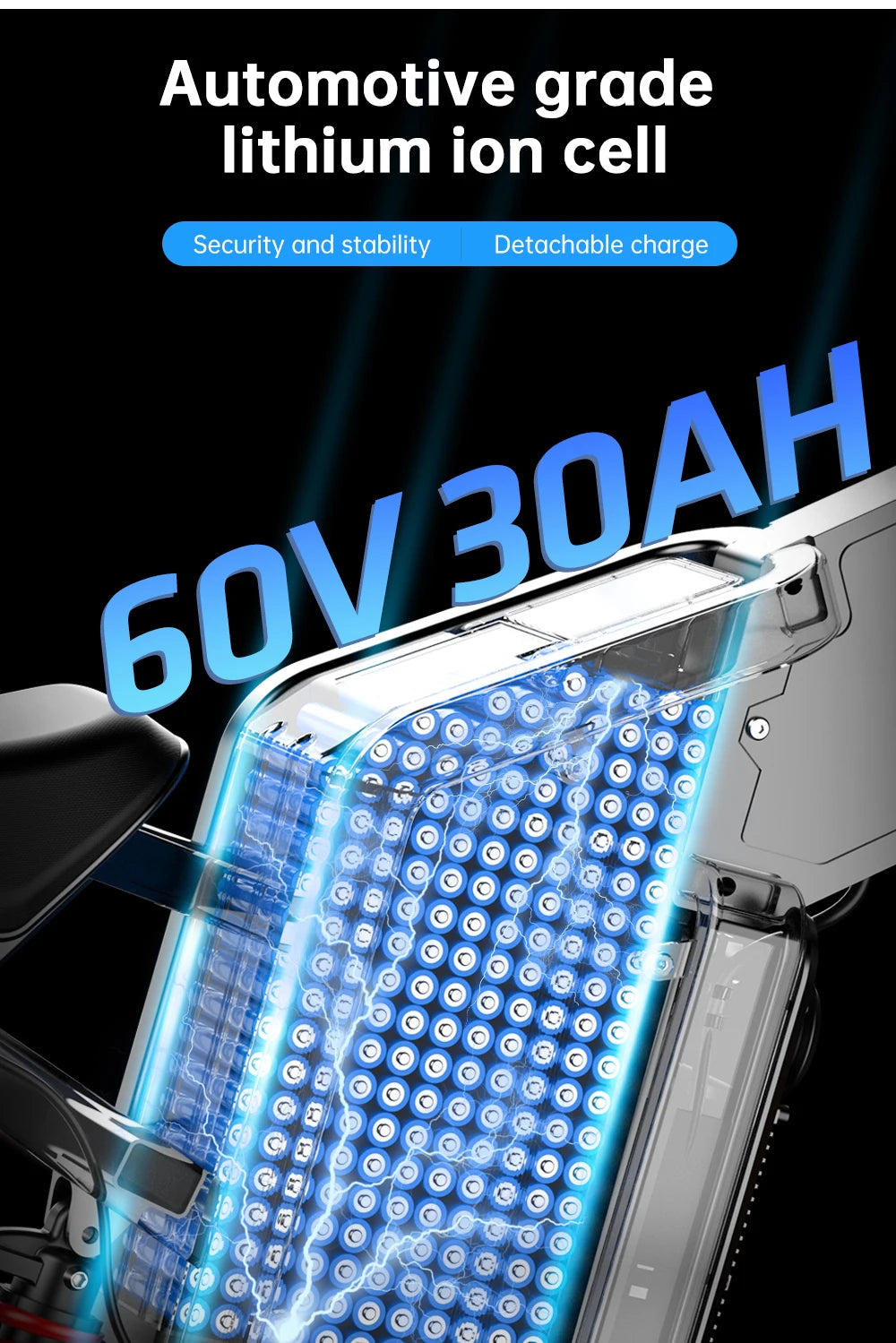

Battery type: 60V30AH lithium battery

Undervoltage protection: 60V

Overcurrent protection: 80A
